With programmable CC, Channel, Range (hi/low), 5 Presets.

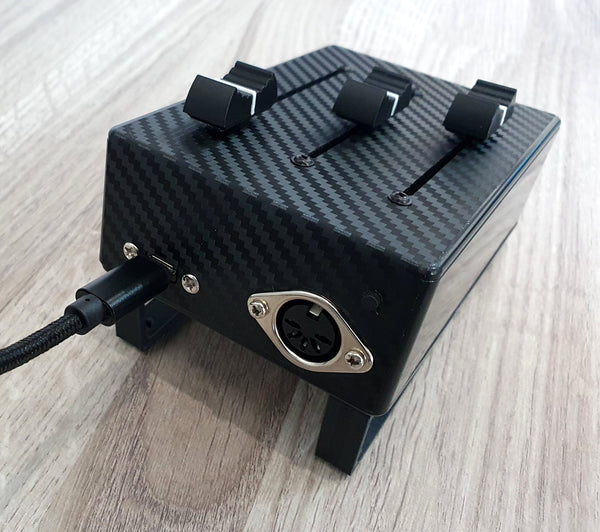

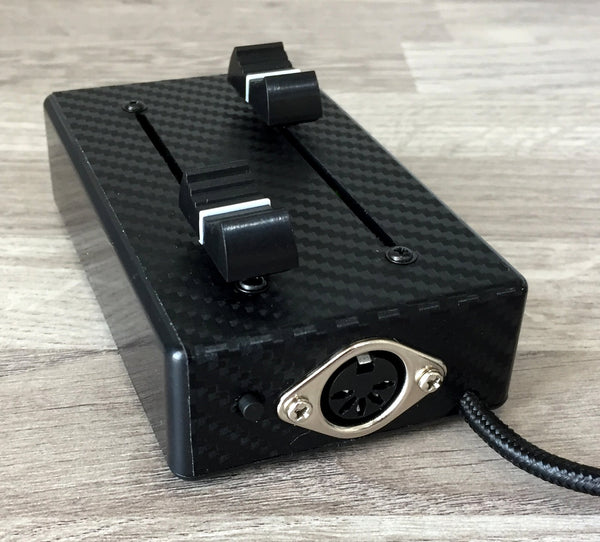

USB and Din MIDI Controller with 2 or 3 Faders, detachable 2m USB cable / Angled Stand (on the 3 fader version). The 2 fader version has rubber feet instead of angled stand and a fixed USB cable.
Box dimensions are 116mm x 78 mm x 37mm (3 Fader version). The 2 Fader version is about 60mm wide. Fader travel is 65mm.
Please note that the item is supplied with a non braided cable.
______________________________________________________________________

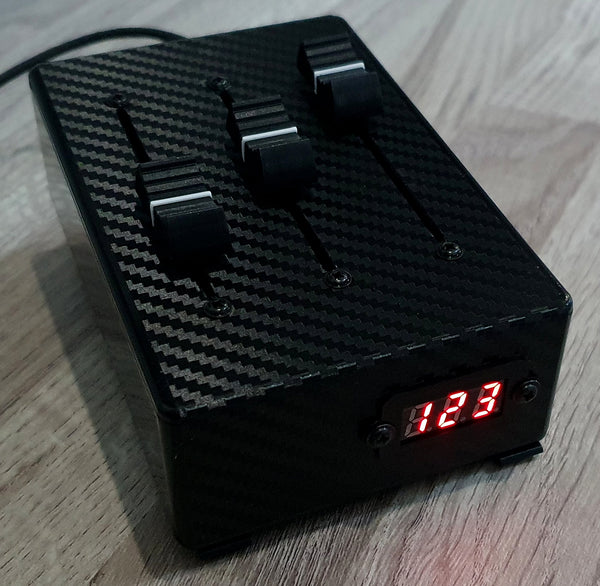

When a fader is moved the display shows the output CC value.
Preset number, CC number, MIDI Channel and Range of the faders can be changed by using the display and small button located at the rear of the box.
The Settings/Presets are stored every time the button is pressed and remembered when powered off.
The USB Cable is also needed to power the unit when only using the DIN socket and needs to be plugged into a USB port/hub or plug socket (phone charger plug).
Can be used to control Ableton Live and other DAW software that allows MIDI learn/mapping, and also any device that uses MIDI CCs (please refer to the manual of your device for the CC numbers).
__________________________________________
Quick video demo
https://www.youtube.com/watch?v=RheLEzsxUvs
Videos featuring Renoise, Microfreak and various DAWs
https://www.youtube.com/channel/UCgWSqQln0fNKMmSzE0zLqbA
Korg Volca Keys with 3 sliders
https://www.youtube.com/watch?v=HbXW_5Xn4EQ
____________________________________________
HOW TO SET THE CC NUMBER
To set the CC# for a fader press and hold the button located at the rear of the box, then move the fader to the number of the CC you want it to control. Let go of the button and the display will show 'CC-' then flash the new CC number.
Tip: If you find it difficult to stop on the exact number, for example you are trying to stop on 10 but it only changes between 9 and 11 go to 30+ then back down and you should be able to stop on 10.
DISPLAY THE CC NUMBER A FADER IS SET TO AND THE PRESET NUMBER
Press the button TWO times, hold it in on the 2nd press - the display shows “dSp” (display) . Move a fader and the display will show the current set cc number.
Releasing the button shows the pre-set number.
CHANGE ALL FADER CHANNEL NUMBERS (1-16)
Press the button THREE times and keeping the button held in on the 3rd press and the display will show “CHA” (channel all) now move any knob/fader to the number of the channel you want all the faders to be set to. Let go of the button and the display will show “c” and the new channel number
CHANGING THE PRE-SET (1-5)
Press the button FOUR times, hold it in on the 4th press and the display will show “PrE” (pre-set). Move the fader to the pre-set number required, let the button go and the display will show “PrE” then the pre-set number.
CHANGE THE LOW RANGE OF A FADER (0-127)
Press the button FIVE times, keep the button held in on the 5th press and the display will show “LO” (low). Now move the knob/fader you want to change the low range of and move it to the number you want it set to. Let go of the button and the display will show “LO” and flash the low range of that knob/fader.
CHANGE THE HIGH RANGE OF A FADER (0 -127)
Press the button SIX times and keep the button held in on the 6th press and the display will show “HI” (high). Move the knob/fader you want to change the high range of and move it to the number you want it set to. Release the button and the display will show “HI” and flash the high range of that knob/fader.
